High Speed Automatic UV Varnishing Machine with Auto-Feed and Curing System for 620×450mm Sheets

1 takım
MOQ
Anlaşılabilir
fiyat
High Speed Automatic UV Varnishing Machine with Auto-Feed and Curing System for 620×450mm Sheets
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Fiyat talebi
Özellikleri
Teknik Özellikler
Ürün adı: UV Kaplama ve Vernik Makinası
Uygulama: Kağıt Baskılı, Karton
Maks.Lifesi Boyutu: 620×450mm
Minimum sayfa boyutu: 260×190mm
Yaprak Ağırlığı: 60-350G/M2
Üretim Hızı: 5500 yaprak/saat
Güç: 15kw
UV Lambası: 2 adetx5.6kw
Ağırlık: 1200kg
Boyut: 2950x1200x1450mm
Vurgulamak:

620×450mm UV Varnishing Machine

,

Auto-Feed UV Varnishing Machine

,

Curing System UV Coating Machine
Temel bilgiler
Menşe yeri: Çin
Marka adı: EcooGraphix
Sertifika: CE, ISO900
Model numarası: ECOO CF-620A
Ödeme & teslimat koşulları
Ambalaj bilgileri: Standart İhracat Paketi: Polywood Karton
Ödeme koşulları: L/C,T/T
Yetenek temini: Yılda 500 set
Ürün Açıklaması

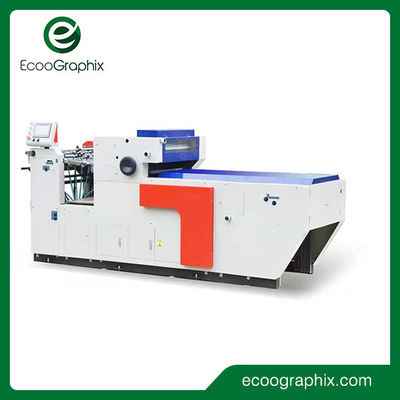

High Speed Automatic UV Varnishing Machine For Printing And Packaging Ecoo CF-620A
Automatic Spot and Overall UV Coating Machine - ECOOO CF-620A
The Ecoo CF 620A UV coating machine offers spot UV and overall UV coating for various printed and packaging products including books, posters, and adhesive stickers. Equipped with an auto-feed system, vanishing system, curing system, and auto-delivery system, this machine enhances the quality and value of printed materials, leading to increased profitability for printing companies. Renowned for its high speed and efficiency, it has earned accolades from clients worldwide.
Specification
Model Ecoo CF-620A
Max.sheet size 620*450mm
MIN.sheet size 260*190mm
Sheet weight 60-350g/m2
Production speed 5500 sheet/hour
Power 15KW
UV lamp 2pcsx5.6kw
Weight 1200KG
Dimension 2950*1200*1450mm
High Speed Automatic UV Varnishing Machine with Auto-Feed and Curing System for 620×450mm Sheets 0
Producing And Packaging
High Speed Automatic UV Varnishing Machine with Auto-Feed and Curing System for 620×450mm Sheets 1 High Speed Automatic UV Varnishing Machine with Auto-Feed and Curing System for 620×450mm Sheets 2 High Speed Automatic UV Varnishing Machine with Auto-Feed and Curing System for 620×450mm Sheets 3 High Speed Automatic UV Varnishing Machine with Auto-Feed and Curing System for 620×450mm Sheets 4 High Speed Automatic UV Varnishing Machine with Auto-Feed and Curing System for 620×450mm Sheets 5 High Speed Automatic UV Varnishing Machine with Auto-Feed and Curing System for 620×450mm Sheets 6 High Speed Automatic UV Varnishing Machine with Auto-Feed and Curing System for 620×450mm Sheets 7
FAQ
1. What are your main products?
We Ecoographix is a specialized supplier of printing machines and consumables. We cover both digital printing and offset printing, including prepress, pressroom and post press, focusing on packaging printing and book printing. We have hundreds of users all over the world. We bring forward top quality of Chinese printing products to meet diversified printing requirements.
2. Where is your factory?
Our sale office is in Hangzhou, one hour by train away from Shanghai. Our factories are in Shanghai, Wenzhou, Suzhou and Nanyang.
3. What is your warranty?
Normally 1 year.
4. Can you also supply the software?
Yes
5. What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours.
