Name: Digital Roll To Sheet Laser Die Cutter with Max 27m/min Cutting Speed and Max 330mm Label Width
Brand: Hangzhou Ecoographix Digital Technology Co., Ltd.
SKU: VD3350L
Price: 50,000.00 USD
Availability: InStock

Digital Roll To Sheet Laser Die Cutter with Max 27m/min Cutting Speed and Max 330mm Label Width

1set

MOQ

Anlaşılabilir

fiyat

Özellikleri Fotoğraf Galerisi Ürün Açıklaması Fiyat talebi

Özellikleri

Teknik Özellikler

Maksimum silindir çapı: 450mm

Maksimum Etiket Genişliği: 330mm

Kesme bıçakları: En fazla 4 adet

Kesme hızı: Maks 27m/dak

Garanti: Bir yıl

Ağırlık: 1400kg

Maksimum genişlik: 288 ila 330 mm

Başvuru: Kalıp Kesme, Laminasyon, Dilme, Sac Kesme

Vurgulamak:

Max 27m/min Cutting Speed Laser Die Cutter

Max 330mm Label Width Digital Die Cutting Machine

Max 4pcs Cutting Blades Label Die Cutter

Temel bilgiler

Menşe yeri: ÇİN

Marka adı: ECOOGRAPHIX

Sertifika: CE

Model numarası: VD3350L

Belge: Digital Label Die Cutter VD...0 .pdf

Ödeme & teslimat koşulları

Ambalaj bilgileri: Standart İhracat Paketleme

Teslim süresi: yaklaşık 20 gün

Ödeme koşulları: L/C, T/T

Yetenek temini: 300Set

Fotoğraf Galerisi

Digital Roll To Sheet Laser Die Cutter with Max 27m/min Cutting Speed and Max 330mm Label Width

Ürün Açıklaması

Digital Roll To Sheet Label Laser Die Cutter With Laminating

The laser die-cutting machine is a digital processing device integrating multiple advanced technologies, combining automatic label material conveyor, automatic web guide, laser flying cutting, and automatic waste removal into one system.

It is suitable for diverse processing solutions ranging from roll-to-roll to roll-to-sheet applications. The machine efficiently handles precision cutting requirements for non-metallic materials such as adhesive labels, PP synthetic paper, PVC film, cardboard, and offset paper, encompassing full-cut, half-cut, flying line, punching, and waste removal composite processes.

With its mold-free digital processing capability, the system directly drives the cutting process through electronic file data, significantly improving production efficiency for small-batch orders, effectively shortening product delivery cycles, and providing flexible and efficient smart manufacturing solutions for personalized customization needs.

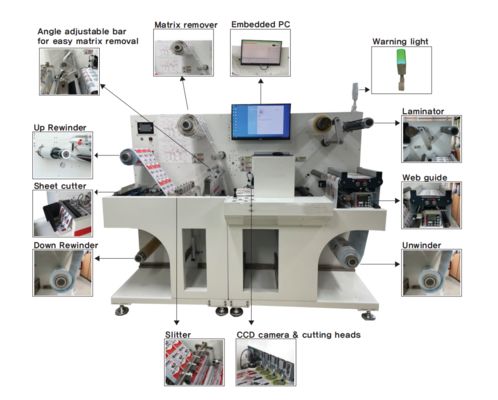

Product Features

High precision feeding system Utilizes ultrasonic web-guide system to ensure perfect material feeding.
Cold laminating Includes cold laminating function for bright, perfect labels. Back liner removal is optional.
Digital die-cutting system Features high precision screw transmission system with maximum speed of 9m per minute. Individual control for 4 heads with auto-adjust distance function.

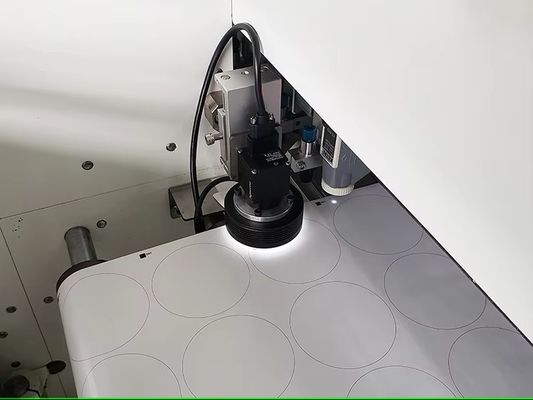

CCD identify system CCD camera position and identify system recognizes sequences for automatic file changing and next graphic cutting.
Waste removing system Dual mechanical force expansion control with multi-angle waste discharge frame ensures uniform waste removal and clean products.
Built-in sheet cutting system Optional built-in PC350 slitter for wired cutting and synchronous die-cutting/sheet cutting.
